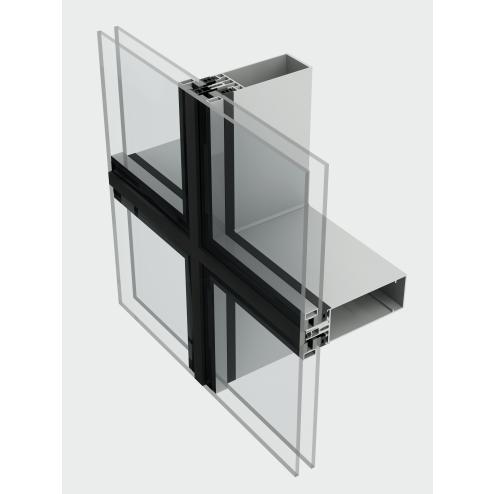

SG52 Curtain Walling System

CATEGORY

Curtain Walling

Description

The SG52 Curtain Walling System is a flexible and high performance structurally bonded system. This aluminium curtain walling system enables specifiers to create impressive continual expanses of glass that not only enhance the aesthetics of a building but also provide the functionality and performance required to meet and exceed current standards.

SG52 Data sheet

Click this link to access the NBS Chorus page for this product and specify it for your project:

NBS SG52

contact us

  • OVERVIEW
  • TECHNICAL DATA
  • DOWNLOAD COLLATERAL

Design features

  • Structurally bonded finish to minimise external sightlines
  • Fully integrates with AluK window and door ranges
  • 52mm high rise curtain walling system
  • Can be faceted, curved or angled
  • Several drainage methods including mullion and zonal
  • Large range of box sizes to optimise small to large spans of glazing
  • CWCT certified

Options

  • Fully integrated vent options including POV, TBT and Top Hung
  • Glazing and infill range from 6mm - 50mm
  • Available in single or dual colour option, polyester powder coating and anodised finishes
  Structurally glazed system
Performances
AWW Classification : 600Pa/ Static 1500Pa, Dynamic 600Pa/ 2400Pa
Size limits
Max glass thickness (mm) : 32mm - 40mm
Solutions
Top hung : X
Side hung : X
Tilt & turn : x
Fixed Light : X
Parralel Opening Vent : X
Features
Frame options : 52mm
