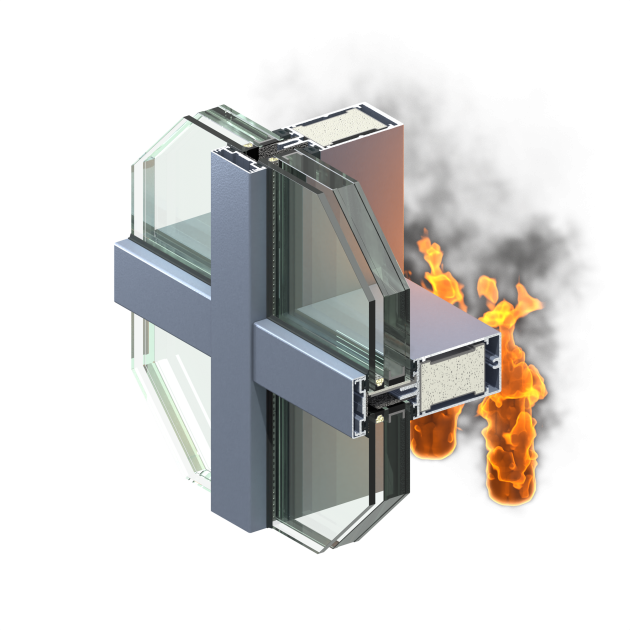

Curtain Wall AW50 FR

Description

The AluFlam AW50 FR is a high‑performance fire‑rated glass façade system designed for architectural projects that require maximum transparency without compromising safety. Using narrow aluminium profiles with a slim 50 mm sightline, the system delivers a clean, modern aesthetic while achieving certified fire resistance levels of EI60, EI90, and EI120.

The façade construction incorporates patented fire‑resistant cooling cores within the aluminium profiles and is fully tested in accordance with European EN standards. Depending on configuration, the system supports fire classifications E, EW, and EI, providing flexibility for both internal and external façade applications. Large glazed panels can be accommodated, allowing expansive glass areas even in high fire‑performance scenarios.

Engineered for demanding commercial environments, the AW50 FR system offers good acoustic performance, thermal insulation values down to Um = 2.33 W/m²K, and compatibility with single or multi‑panel curtain wall designs. Aluminium profiles can be powder coated or anodised in a wide range of finishes, ensuring long‑term durability and design freedom.

The AluFlam AW50 FR façade system is an ideal solution for projects such as public buildings, transport hubs, cultural venues, and commercial developments where fire protection, visual transparency, and architectural quality are essential.
