CATEGORY
Folding and Sliding Doors

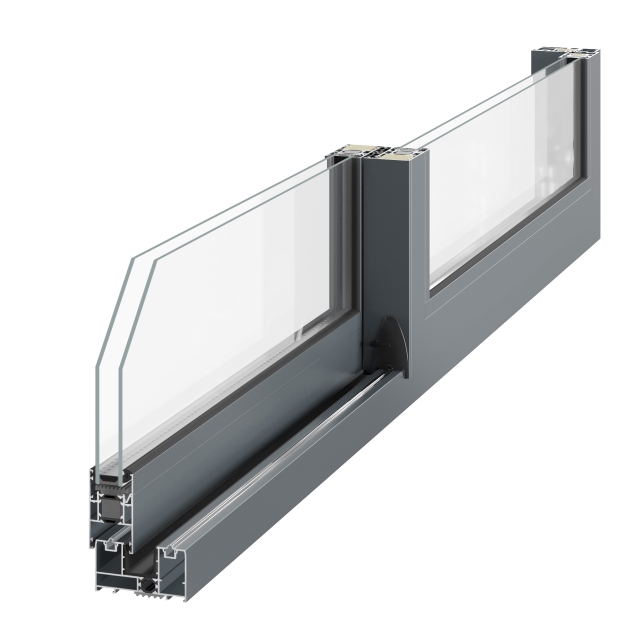

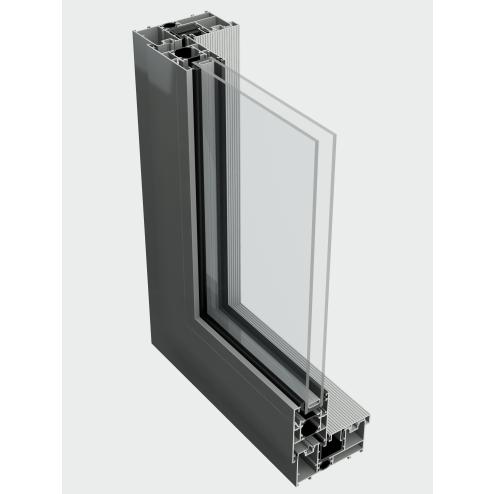

Engineered for diverse architectural projects, this multi-configuration system adheres to the highest UK standards, achieving a DSER of ‘C’ rating when double glazed and boasting impressively slim 45mm sightlines.

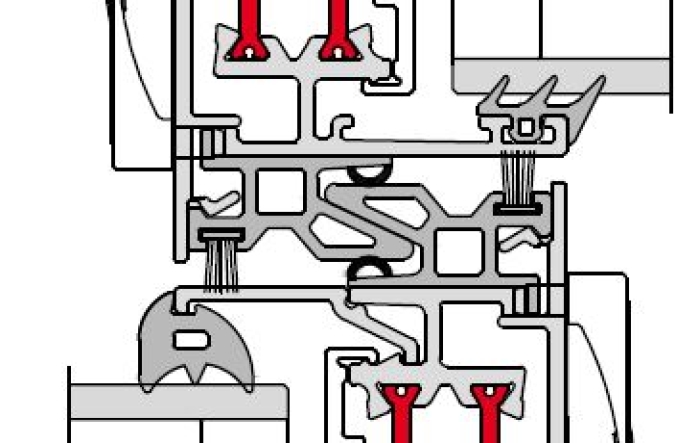

Expand your design possibilities with dual color options and a wide range of colors and anodized finishes. The BSC94 HI's anti-bimetal low lambda strip accommodates varying expansion rates, preserving the door's integrity and ensuring long-lasting performance.
| BSC94 | BSC94 Slim | |
|---|---|---|
| Performances | ||
| U value W/m²K (Double glazing) (Mono rail) : | 1.6 W/m²K | - |
| U value W/m²K (Triple glazing) (Mono rail) : | 1.5 W/m²K | - |
| U value W/m²K (Double glazing) (Duo rail) : | 1.7 W/m²K | 1.7 W/m²K |
| Air permeability : | Class 3 (600 Pa) | Class 3 (600 Pa) |
| Water resistance : | Class 6a (250 Pa) | Class 6a (250 Pa) |
| Security PAS 24 : | PAS 24 & SBD | x |
| Size limits | ||
| Max Vent Weight : | 400kg | 400kg |
| Max Frame Height : | 3000mm | 3000mm |
| Sightline (Head) : | 15.5mm | 115.5mm |
| Sightline (Cill) : | 115.5mm | 115.5mm |
| Sightline (Jamb) : | 115.5mm | 115.5mm |
| Max sash width (mm) : | 2000mm | 2000mm |
| Features | ||
| Dual color option : | x | |
| Multi-point locking : | x | |
| Glazing options : | Internal | |
| Glazing thickness : | 20mm-31mm |
| BSC94 | BSC94SLIM | |
|---|---|---|
| Performances | ||
| Acoustic performance (dB) : | Rw (C;Ctr) 36 (-1;-3) dB | npd |
| Air tightness (Pa) : | Class 4 (600 Pa) | Class 3 (600 Pa) |
| Water tightness (Pa) : | Class 7a (300 Pa) | Class 4a (150 Pa) |
| Wind load (Pa) : | C3 (1200 Pa) | C3 (1200 Pa) |
| U value W/m²K (Double glazing) (Mono rail) : | - | |
| U value W/m²K (Triple glazing) (Mono rail) : | - | |
| U value W/m²K (Double glazing) (Duo rail) : | 1.7 W/m²K | 1.7 W/m²K |
| Certifications : | C Rated | C Rated |
| Security PAS 24 : | X | - |
| Solutions | ||
| Opening : | Inline Sliding | Inline Sliding |
| Mono Rail : | X | - |
| Duo Rail : | X | X |
| Tri rail : | X | - |
| Size limits | ||
| Max Vent Weight : | 400 kg | 400 kg |
| Max Frame Height : | 3000 mm | 3000 mm |
| Max Frame Height with security features : | 2600 mm | - |
| Sightline (Head) : | 115.5 mm | 115.5 mm |
| Sightline (Cill) : | 115.5 mm | 115.5 mm |
| Sightline (Jamb) : | 115.5 mm | 115.5 mm |
| Max sash width (mm) : | 2000 mm | 2000 mm |
| Features | ||
| Sightlines : | 85 mm | 45 mm |
| Dual color option : | X | X |
| Multi-point locking : | X | X |
| Glazing options : | Internal | Internal |
| Glazing thickness : | 20mm - 31mm | 20mm - 31mm |
