Folding and Sliding Doors

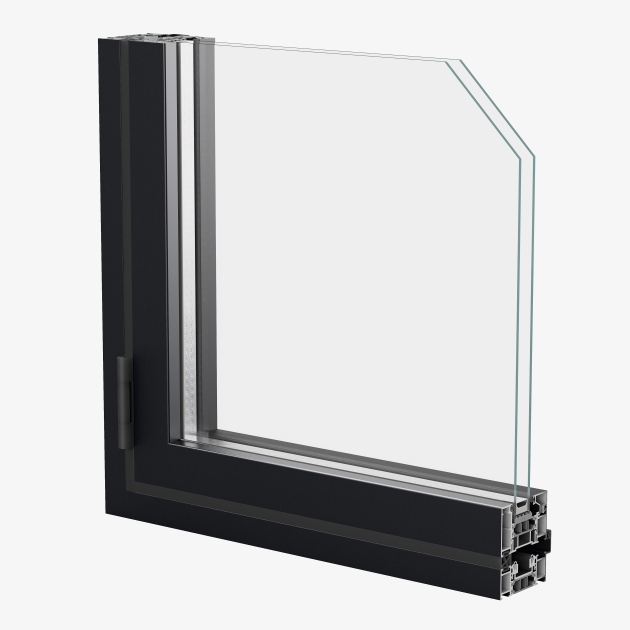

The IconiK has been designed with aesthetics and light at the forefront. It features a slender 87mm interlock and sleek 80mm sightlines, which means more glass and less frame, creating a premium look that appeals to both homeowners and commercial customers.
The IconiK is a truly weather-resistant system, achieving 1.3 U-Values (double glazed) and class-leading wind and water tightness, all without foams. Design features that boost thermal performance include advanced interlock seals, compression-moulded corners, and a new half-roller which replaces a traditional floating mullion for improved energy-efficiency.
A new half roller design eliminates the need for a floating mullion, resulting in reduced sightlines and better thermal performance.
And the captive top guide and positioning rail for the bogie helps to keep smooth operation of the door and improve safety on high doors, with standard rollers with HD capacity engineered to carry up to 130kg per panel.
Thanks to the intelligent design of the IconiK, it allows not only the creation of a wide range of door configurations, but also a range of door options. Changing only the sash, you can create single doors, double doors, and folding doors, in both Slim and Standard versions, for a unified aesthetic across the whole property and reduced stockholding.
Non-Handed Lock and Keep – easier fabrication and installation
Optional Shootbolt Locking for larger openings
Slim Hinges and Rollers – modern, elegant design
High-Capacity Rollers – 130 kg per panel, smooth operation
Half-Roller Design – no floating mullion, cleaner appearance
Shootbolt Hardware – for added security
Taller Door Capability – for larger openings
Thermal Insulation – plastic isolators and glazing foam
HI & Non-HI Versions – to meet performance needs
| IconiK Bifold Door | |
|---|---|
| Performances | |
| U value W/m²K (Double glazing) : | 1.3 W/m²K |
| U value W/m²K (Triple glazing) : | 1.0 W/m²K |
| Air tightness (Pa) : | Class 2 (300 Pa) |
| Water tightness (Pa) : | Class 5a (200 Pa) |
| Wind load (Pa) : | Class A3 (1200 Pa) |
| Security : | PAS 24 |
| Solutions | |
| 2-2-0 : | x |
| 3-3-0 : | x |
| 4-4-0 : | x |
| 4-2-2 : | x |
| 6-6-0 : | x |
| 6-3-3 : | x |
| 7-7-0 : | x |
| Size limits | |
| Max Vent Weight : | 130kg |
| Max Frame Height : | 2400mm std / 3000mm |
| Sightline (Head) : | 80mm |
| Sightline (Cill) : | 91mm |
| Sightline (Jamb) : | 80mm |
| Sightline (Meeting Stile) : | 87mm |
| Max glass thickness (mm) : | 23mm-46mm |
| Max sash width (mm) : | 1200mm |
| Features | |
| Dual color option : | x |
