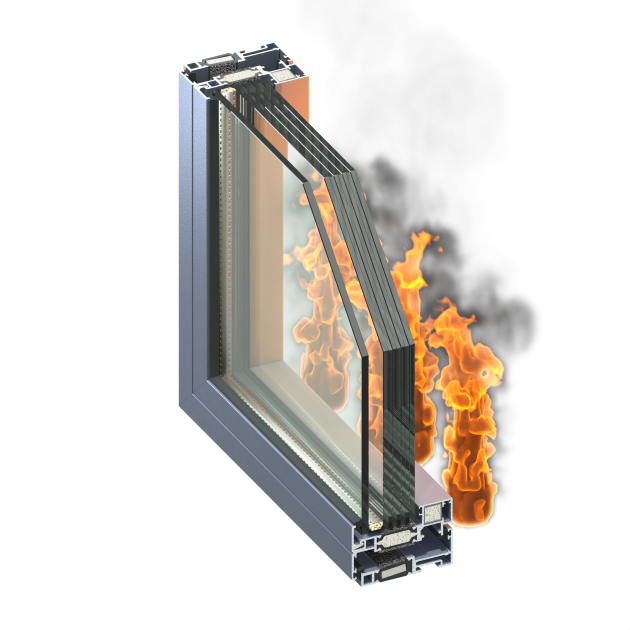

AluFlam A+ EI60 Outward Opening Fire‑Rated Window System

Description

The AluFlam A+ outward opening fire‑rated window system combines slim aesthetics with certified fire performance. With a minimal 54 mm sightline, it maintains a light, modern appearance while achieving EI60 fire resistance from both internal and external sides.

Designed for seamless integration with the wider AluFlam A+ façade family, the system offers excellent visual consistency across building envelopes. It can be installed as a standalone window or as part of a curtain wall or façade system, making it suitable for a wide range of commercial and architectural applications.

Available with manual or automatic opening options, the outward opening A+ window provides flexibility in both operation and design. Aluminium profiles can be powder coated or anodised in a wide selection of finishes, ensuring durability, performance, and design versatility without compromising fire safety.

OVERVIEW
TECHNICAL DATA HI

Design features

Fire resistance – EI60 / EW60 / E60 for the used glass:
VETROTECH CF60 / air / Planilux ( 27 / 12 / 6 mm )
Visual effect – narrow window frame with 54 mm sightline ensures full visual and system compatibility with all other A+ family products
Universal installation – the possibility of installation as a single window in the wall construction and as an element of the facade system
Various opening options – a manual opening option with a handle or auto-matic opening using special actuators, top hung opening angle: 50 degrees
Numerous colours and ﬁnishes – aluminium proﬁles can be powder coated (RAL, NCS) or anodised
