Design features
- Tested to PAS 24
- Multi-point locking mechanism
Options
- Accepts 24mm – 40mm double or triple glazing
- Available in single and dual colour
- Available for new build or refurbishments
- Available in single or double door configuration

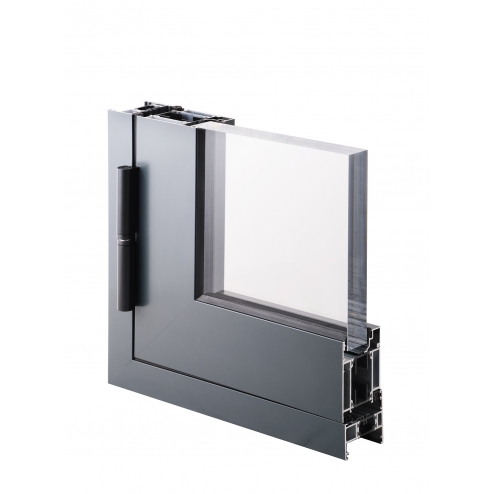

Optio 58BD Flush Entrance Door
CATEGORY
Doors
Description
Contemporary, modern.
Available in a variety of formats, with slim sightlines and flush asthetics.
The 58BD Flush performance, attaining U-values of 1.6 Uw with double glazing and 1.4 Uw with triple glazing.
- OVERVIEW
- TECHNICAL DATA
- DOWNLOAD COLLATERAL
| Single open in | Single open out | Double open in | Double open out | |
|---|---|---|---|---|
| Performances | ||||
| U value W/m²K (Double glazing) : | 1.6 W/m²K | 1.7 W/m²K | 1.7 W/m²K | 1.6 W/m²K |
| U value W/m²K (Triple glazing) : | 1.4 W/m²K | 1.4 W/m²K | 1.4 W/m²K | 1.4 W/m²K |
| Air tightness (Pa) : | Class 2 (300 Pa) | Class 2 (300 Pa) | Class 2 (300 Pa) | Class 1 (150 Pa) |
| Water tightness (Pa) : | 9A (600 Pa) | E1950 (1950Pa) | 4A (150 Pa) | 7A (300 Pa) |
| Wind load (Pa) : | Class A3 (1200 Pa) | Class A3 (1200 Pa) | C2 (800 Pa) | C2 (800 Pa) |
| Building regulations part L compliant : | x | x | x | x |
| Security PAS 24 : | x | x | x | x |
| Certifications : | Q-mark | Q-mark | Q-mark | Q-mark |
| Secured by design : | x | x | x | x |
| Durability EN1191 category : | 50,000 Cycles | 50,000 Cycles | 50,000 Cycles | 50,000 Cycles |
| Size limits | ||||
| System depth : | 58mm and 70mm | 58mm and 70mm | 58mm and 70mm | 58mm and 70mm |
| Maximum door leaf size : | 1200mm x 2400mm | 1200mm x 2400mm | 2400mm x 2400mm | 2400mm x 2400mm |
| Maximum door leaf weight : | 4 Hinges 150 Kg | 4 Hinges 150 Kg | 4 Hinges 150 Kg | 4 Hinges 150 Kg |
| Glazing thickness : | 24mm - 40mm | 24mm - 40mm | 24mm - 40mm | 24mm - 40mm |
| Features | ||||
| Thermally broken : | x | x | x | x |
| Panel door : | x | x | x | x |
| Rounded contours : | x | x | x | x |
| Hardware | ||||
| Multi-point locking : | x | x | x | x |
| Barrel hinges : | x | x | x | x |
| Finishes | ||||
| Single colour : | x | x | x | x |
| Dual color option : | x | x | x | x |
| Textured : | x | x | x | x |
