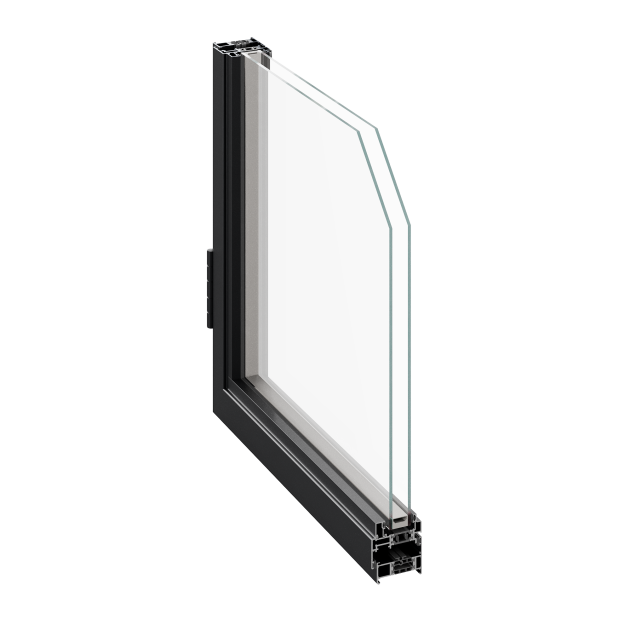

Heritage Door

Description

Stylish and industrial, the Heritage Entrance Door allows you to create a seamless aesthetic across a wide range of door opening sizes and uses, from single doors to French doors with multiple fan lights.

Heritage Door Data sheet

Slim sightlines of just 51.7mm allows maximum light transmission, elegantly framing outside space. All complemented by market-leading U-Values of 1.4 w/m2K making it fully compliant with Part L Building Regulations for refurbishment projects.
Crafted to match the 58BW HI window range, its shared profiles, beads, and ancillaries offer new and existing fabricators a full heritage range of windows and doors with less stock-holding and simple fabrication.

OVERVIEW
TECHNICAL DATA HI
DOWNLOAD COLLATERAL

Design features

Suited to existing 58BW ST HI range
of profiles, beads and ancillaries
45 degree mitre and crimped sash
Slim sightlines: 51.7mm sash / 112.5mm sash
to mullion
New Heritage door 28mm QUIK CLIPTM bead
for door sash
Open Out/In 90 degree door restrictor

Options

Suited Heritage door hardware and handles
in four colours/textures
Option to add multiple horizontal and vertical
profiles to door sash using plant-on bars or
46.5mm door transom profile
Configurations of single / double / open-in /
open-out with options for side and fan lights

	Heritage Door	Heritage Double Door
Performances
U value W/m²K (Double glazing) :	Single Open Out 1.4 W/m²K	Double Open In:1.4 W/m²K
Air tightness (Pa) :	600 Pa (Class 4)*	600 Pa (Class 4)*
Water tightness (Pa) :	750 (Class E750)*	200 Pa (Class 5A)*
Size limits
System depth :	58-70 mm	58-70 mm
Maximum door leaf weight :	65 kg
Glazing thickness :	24 - 28 mm	24 - 28 mm
